Zniper Basic Body Zextant

Available in 4 sizes:

• Small (S): 19-23mm
• Meium (M): 22-26mm
• Large (L): 25-29mm
• XLarge (XL): 28-32mm

• Size of the Zextant can be changed by changing the Basic Body and the corresponding plunger pin.

Content:

• 3 springs of different strength
• (soft – pre-assembled, medium strength, hard)
• Soft spring => 1,2 -3,9 Nm
• Medium spring => 3,8 -7,8 Nm
• Hard spring => 7,5 -11,8 Nm

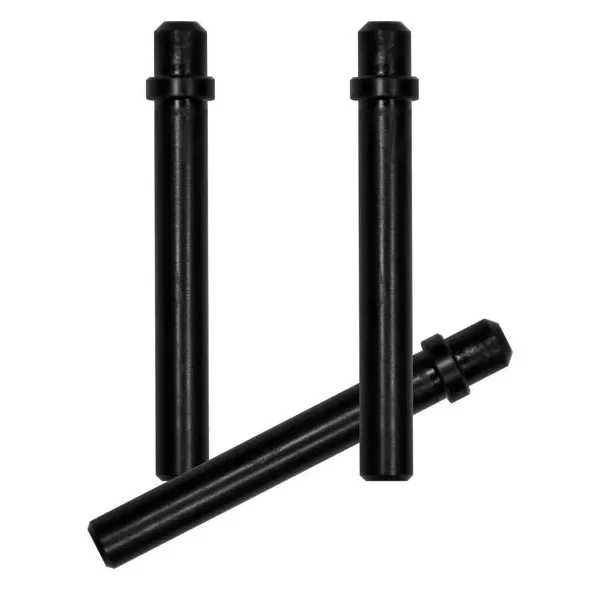

• 1 replacement pin fitting the plunger in the new enhanced Version 2
• These operating instructions
• 2 spacers: 1x 1mm and 1x 2mm to reduce the screw in depth of the plunger when needed
• The following tools:
• 1x Allen key 1,5mm
• 1x Allen key 2,0mm
• 1x Clamping Tool to tighten Zextant and grid system
